On July 1, 2015, an official decree of the Government of the Russian Federation came into force concerning the indicators of maximum permissible loads on the road surface. The introduced restrictions are forced and relate to freight vehicles carrying out transportation in excess of weight and size standards. According to the decree, limit values of loads are introduced for the total mass of the vehicle, as well as for single and close axles.

As a means of monitoring the excess of permissible indicators, special systems are used that fix the load on the roadway. Road weight control makes it possible to preliminarily identify potential offenders from the general traffic flow - vehicles that exceed weight and size standards. Such a system works "in tandem" with a stationary weight control, which stops the vehicle for subsequent inspection for violations of standards, as well as to determine the damage caused to the road surface.

Vehicle weight control analyzes the vertical forces of the axle (axle group) in motion on the road surface. Also, the weight control system on the roads determines the total mass of the vehicle, its speed and the distance between the axles. The functionality of such equipment allows you to check a vehicle moving at a sufficiently high speed. At the same time, road weight control does not in any way restrict the passage of all other vehicles moving in the general stream. Data transmission (measurement results) is carried out via wireless communication or via fiber optic cable.

The road weight control system consists of the following elements: data transmission device, control and automation cabinet, as well as special software. Power receiving modules and indicators of vehicle passage are built into the roadway.

Automated road weight control system

PARKTIME.PRO supplies modern road weight control systems UnicamWIM to the domestic market. These systems have functionality that is significantly superior in efficiency to platforms for stationary weighing control and low-speed checkweighers. For comparison:

• The UnicamWIM system carries out road weight control at speeds up to 255 km / h, while the measurement error does not exceed 5%.
• The system can be successfully used for automatic collection of monetary fines at stationary points of weight and size control (ASK).
• The UnicamWIM complex is capable of performing a preliminary selection of offenders, as well as keeping records and classification of passing vehicles.

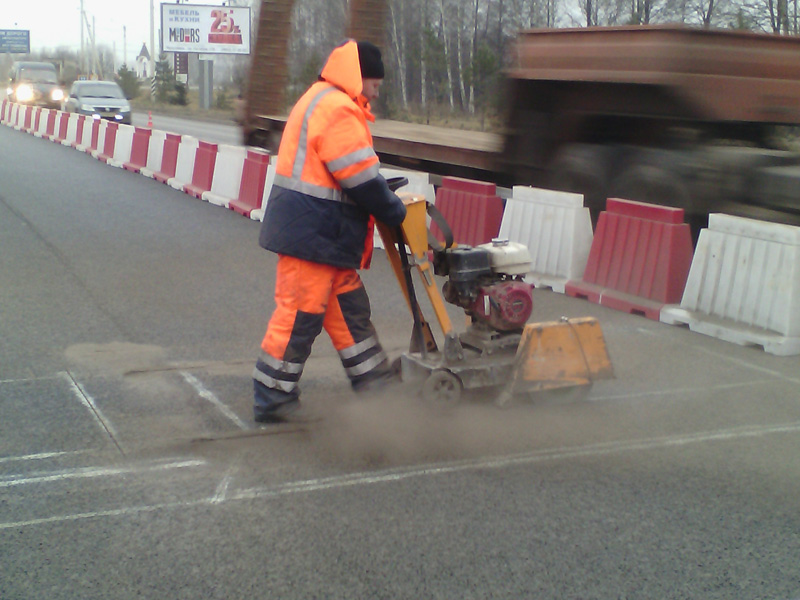

Road weight control systems UnicamWIM work in automatic mode. To place them on the road does not require the allocation of a special lane. And to install the power receiving modules, you do not need to equip a solid reinforced concrete base: these elements are simply built into the roadbed. Convenient and efficient!

Main characteristics of the system:

• high-speed weighing control (accurate measurement at speeds from 3 to 255 km / h
• the accuracy of measuring the total mass of the vehicle with an error of no more than 5% (allows using the system for automatic penalties)
• measurement of vehicle weight in the range from 3,500 kg to 200,000 kg.
• determination of the number of vehicle axles
• suitable for Russian weather conditions operating temperature range (from -40°С to + 70°С) and relative humidity (up to 100%)
• overspeed measurement in the range from 5 to 250 km / h with an error of no more than 2%
• system for fixing the state number of the vehicle and photo fixing of all passages
• measurement of vehicle dimensions (error no more than 60 mm)
• classification of transport by type (more than 40 pre-installed with the possibility of individual adjustment)
• site speed control
• Software for automatically entering information into the database without the direct need for the operator
